Ceiling Mount Concealed FCU Fan Coil Unit 220V For Hotels

Ask Lasest Price
Brand Name :	XUGUANG
Model Number :	FP-68WA
Payment Terms :	T/T

Add to Cart

Product Details
Company Profile

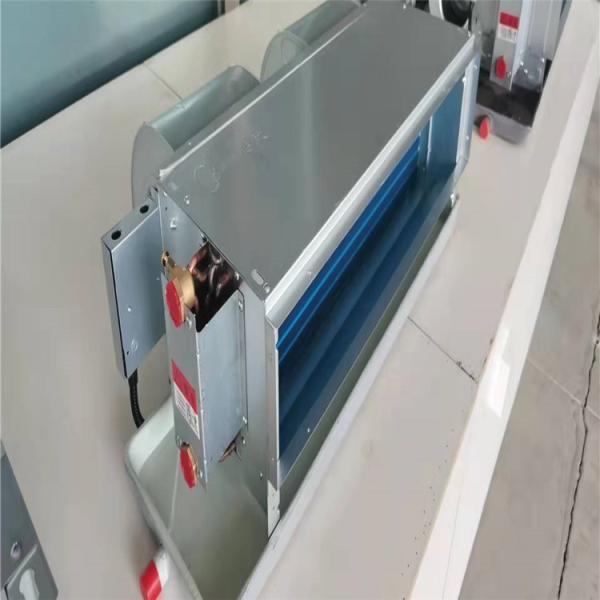

Ceiling Mount Concealed FCU Fan Coil Unit 220V For Hotels

Product Application

Fan coil units are mainly composed of centrifugal fans and coil heat exchangers.It is the terminal device of the central air conditioning system.It is widely used in hotels, restaurants, factories, hospitals, exhibition galleries, shopping malls and moving buildings.It is used to meet the requirements of cooling, dehumidification, heating , creating a fresh and tranquil working and living environment.
 	 			Model and performance

 			FP-34
 			FP-51
 			FP-68
 			FP-85
 			FP-102
 			FP-136
 			FP-170
 			FP-204

 			Rated air flow 			m³/h
 			high
 			340
 			510
 			680
 			850
 			1020
 			1360
 			1700
 			2040

 			Medium
 			260
 			390
 			510
 			640
 			770
 			1020
 			1280
 			1530

 			low
 			170
 			260
 			340
 			430
 			510
 			680
 			850
 			1020

 			Rated cooling capacity 			Kcal/h
 			H
 			1.98
 			2.8
 			3.87
 			4.58
 			5.42
 			7.38
 			9.08
 			11.1

 			H
 			1702
 			2408
 			3328
 			3938
 			4661
 			6346
 			7808
 			9546

 			Rated heat 			Kcal/h
 			H
 			3.39
 			4.5
 			6.35
 			7.45
 			9.22
 			12.4
 			16.3
 			19.5

 			H
 			2915
 			3870
 			5460
 			6407
 			7930
 			10665
 			14020
 			16770

 			The input power 			W
 			12Pa
 			37
 			52
 			62
 			76
 			96
 			134
 			152
 			189

 			30Pa
 			44
 			59
 			72
 			87
 			108
 			156
 			174
 			212

 			50Pa
 			49
 			66
 			84
 			100
 			118
 			174
 			210
 			250

 			The amount of water 			Kg/h
 			350
 			510
 			660
 			800
 			980
 			1280
 			1600
 			1920

 			Flow resistance 			Kpa
 			30
 			30
 			30
 			30
 			40
 			40
 			40
 			40

 			Motor number
 			1
 			2
 			3
 			4

 			power
 			220V/50HZ


Main Features1) Simple structure and convenient installation
2) Adopting advanced world famous brand components
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
Detailed Images
Features of fan coil unit
 More security, more reliable, and more service life
 Each fan-coil heat exchanger will be undergone pressure leak detection.
 The inlet and outlet are of forged brass structure, which is reliable and durable.
 All materials are well fireproof. The motors are with overheating and power failure protection devices.
 With free- maintenance Ultra-low noise rolling bearings, the service life can reach up to 35,000 hours. The shaft of the motor is specially treated without rust.
 The casing is made of high-quality cold-rolled steel plate, sprayed plastic or hot-dip galvanized steel plate, which is mechanically bitten into the shape, which is strong and anti-corrosive.

 High performance, high efficiency
 The coil are equipped with seamless red copper tube string with high-efficiency corrugated aluminum fin structure, which is integrated by mechanical expansion. The combination is tight enough to make sure a higher heat transfer efficiency , a more sufficient heating efficiency , and a dust free surface .
 Advanced technology with lower noise
 The fan impeller has no welding points as a whole, and the wheel frame ring is tightly integrated and never deformed. The double-inlet forward-leaning airfoil centrifugal galvanized steel wind wheel has undergone strict dynamic and static balance tests. The air is transmitted in a streamlined manner to reduce vortexes. The generation of swirling air reduces the noise generated during air friction, and the unit runs more smoothly and quietly.
 Beautiful appearance, easy maintenance
 The unit is with humanized design for easily maintain and repair.  The unit filter can also be cleaned at any time.


Product Tags:

FCU Fan Coil Unit

Hotels FCU Fan Coil Unit

Concealed fcu unit

Ceiling Mount Concealed FCU Fan Coil Unit 220V For Hotels

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Shandong Xuguang Tank Air Conditioning Equipment CO..Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Explore more FCU Fan Coil Unit products from this supplier

Find Similar Products By Category:

Home Appliances

Hot Searches:

Model and performance		FP-34	FP-51	FP-68	FP-85	FP-102	FP-136	FP-170	FP-204
Rated air flow m³/h	high	340	510	680	850	1020	1360	1700	2040
	Medium	260	390	510	640	770	1020	1280	1530
	low	170	260	340	430	510	680	850	1020
Rated cooling capacity Kcal/h	H	1.98	2.8	3.87	4.58	5.42	7.38	9.08	11.1
Rated cooling capacity Kcal/h	H	1702	2408	3328	3938	4661	6346	7808	9546
Rated heat Kcal/h	H	3.39	4.5	6.35	7.45	9.22	12.4	16.3	19.5
Rated heat Kcal/h	H	2915	3870	5460	6407	7930	10665	14020	16770
The input power W	12Pa	37	52	62	76	96	134	152	189
	30Pa	44	59	72	87	108	156	174	212
	50Pa	49	66	84	100	118	174	210	250
The amount of water Kg/h		350	510	660	800	980	1280	1600	1920
Flow resistance Kpa		30	30	30	30	40	40	40	40
Motor number		1	2				3	4
power	220V/50HZ
